SVC Trench Grate and Channel Sets provide a complete, modular solution for effective linear surface drainage. They are designed to solve the problem of efficiently removing water along a continuous line, such as across driveways, at carpark boundaries or in front of commercial building entrances.

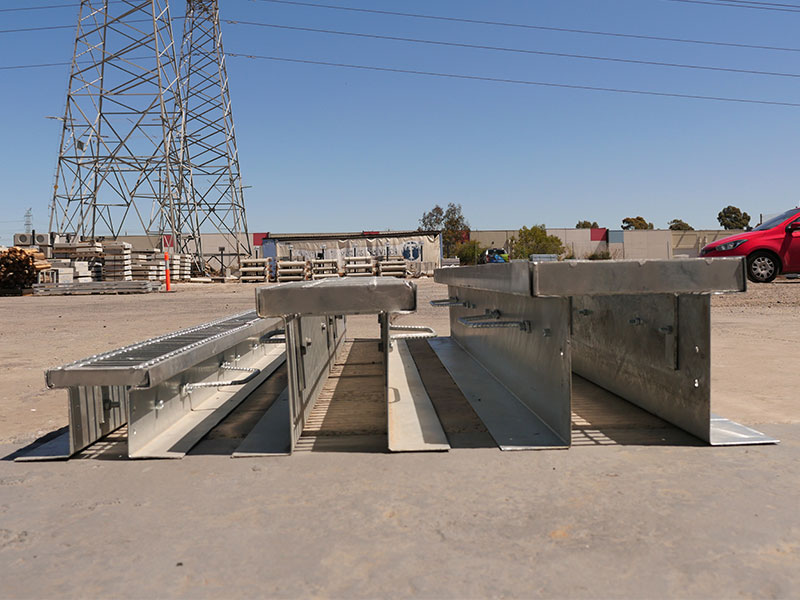

The system consists of 1m steel grate sections that are bolted down into steel channels beneath, where each channel forms one side of a trench wall. The bases of the channel walls can be easily bolted down into concrete bedding and backfilled on each side with more concrete, allowing quick and simple formation of a trench drain.

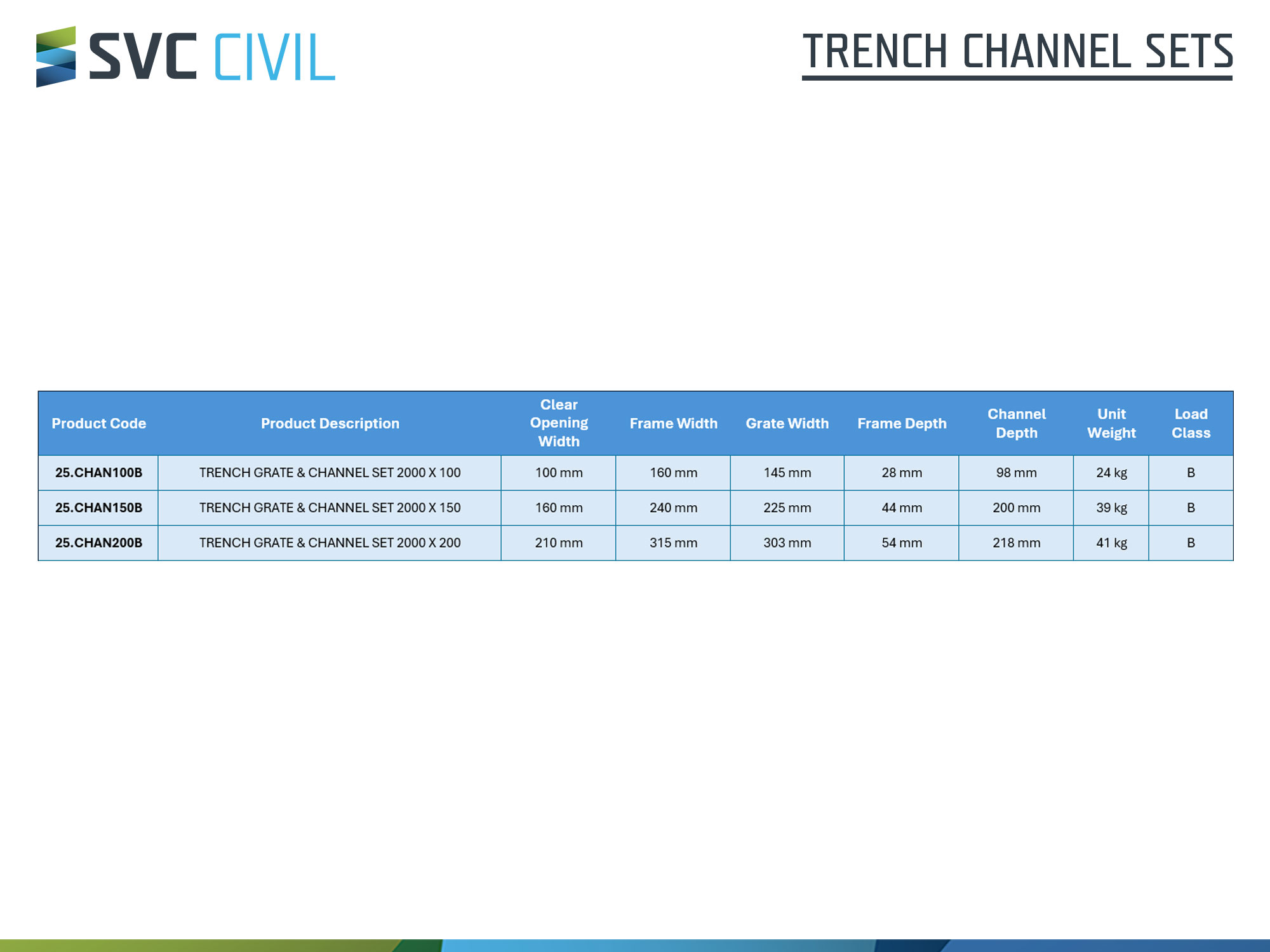

SVC Trench Channel Sets are load-rated as per AS 3996:2019 – Class B to suit pedestrian and slow-moving domestic traffic. Three clear opening sizes are available.
This versatile solution prevents large-scale water ponding, protecting pavements and pedestrian areas by channelling surface water into the drainage system.
